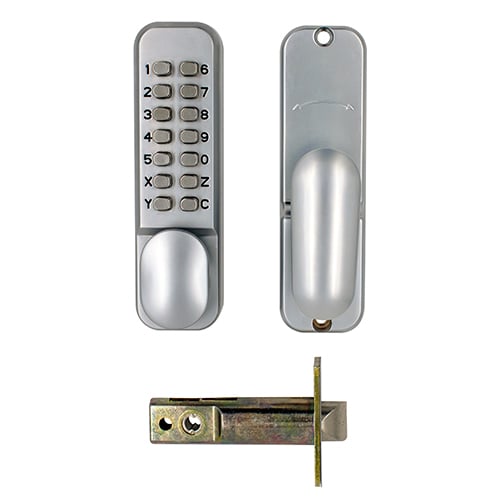

TSS Digital Lock with Tubular Mortice Latch
TheTSS Digital Lock has 14 buttons and can be programmed with a code length of 3-7 digits (non sequential); this makes over 5000 possible combination options!
This light to medium duty lock comes with a tubular latch, is reversible (non-handed) and features a removable holdback option.
It is both 240 Hour Salt Spray Corrosion Resistant To EN1670 and fire tested to EN1634 up to 1 hour if used with TSSINTKIT.
TSS - Stock More For Less
TSS believes that quality doesn't have to come with a high price tag. TSS to provide high-quality products to the trade that meet specification requirements, all at an affordable price. TSS manufactures its products to high standards to ensure their products are an improvement on your current product choice.
- Dimensions: (H) 142mm x (W) 41mm.
- Backset: 60mm.
- Suitable for doors: 30 - 65mm thick
- Outside - Entry via code
- Inside - Exit via paddle
- Number of buttons: 14
- Handed: Reversible
- Holdback: Yes (can be removed)
- Fire Tested: NO (YES –If used with TSSINTKIT tested to EN1637–
Up to 1 Hour)
- Salt Spray tested: 240 Hour Salt Spray Corrosion Resistance To EN1670
- Usage: Low to Medium Traffic
- Neoprene Seals
- Strike Plate & Box Keep
- Latch (60mm)
- Latch Support Post
- Tweezer (for changing code)
- 2x Coded Tumblers
- 2x Uncoded Tumblers
- Code Card
- Plastic Clip
- Fitting & Code Change Instructions
How do you change the code on this digital door lock?
This lock requires the manual arrangement of individual metal tumblers at the rear of the lock. This process requires the lock to be removed from the door and the C button to be held down whilst the pins are re-arranged full instructions are provided.
How heavy Duty is this digital door lock?
The TSS digital lock series is an entry-level light-duty range ideal for internal wooden doors where there is a light to medium traffic expectation. This is our most cost-effective digital door lock and one of our most popular.
Is this digital door lock suitable for use outside?
This lock is ideally suited to internal doors. It will function externally, however, due to the construction and materials used, exposure to the elements may reduce the lifespan of the product and cause damage to its finish.
What locking device does this digital door lock work with?
This product works with a tubular mortice latch which is included in the box.
Can the user code feature the same number more than once?
No, the same character can not appear more than once in the code for this product
Does the user code have to be entered in the correct sequence?
No, codes on this product are non-sequential.
Does this digital door lock feature holdback functionality?
Yes, this product features a manual holdback functionality which can be removed if not wanted.
Does this digital door lock feature a manual key override?
No, This product does not offer a key override functionality.
How does the selectable holdback work on this digital door lock?
This lock features a holdback function, where the latch can be mechanically held back in the open position by a snib on the inside handle. This snib can be removed, turned around, and replaced. This blanks off the holdback snib window and eliminates the holdback function being used.
Is this suitable for use outdoors?
Ideally, this product would be used indoors. Although not designed for external use, It will work outdoors, and they are commonly seen fitted to gates and temporary structures, however, they contain ferrous components, and exposure to the outdoors will accelerate wear and reduce the life of the product.
